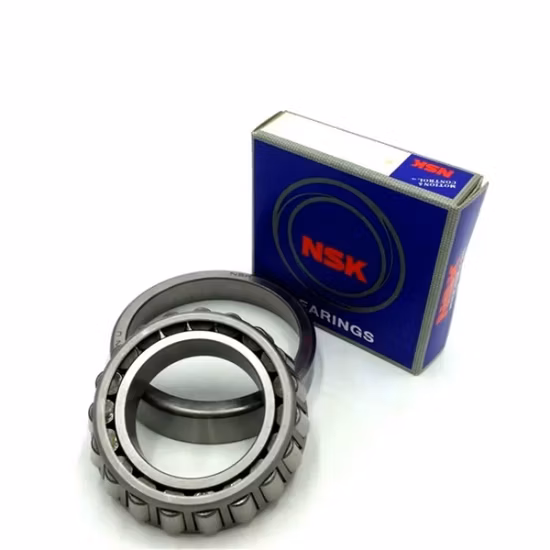

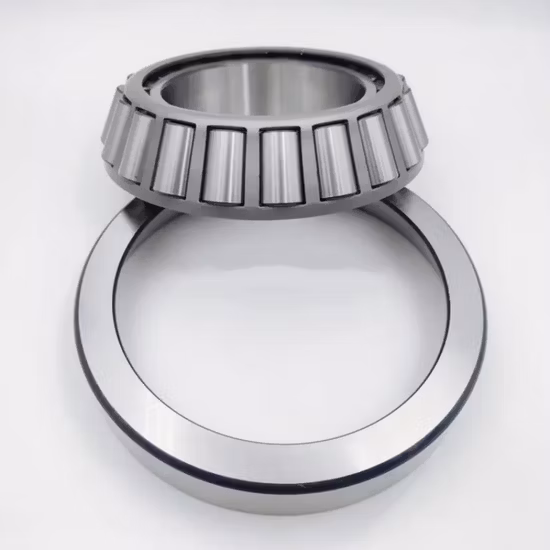

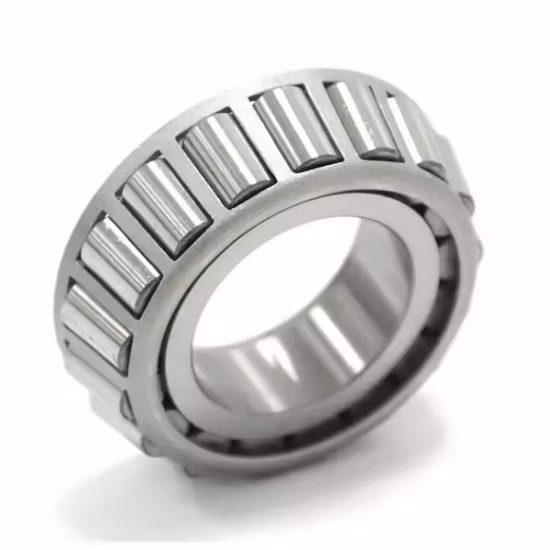

LM501349/10 Inch Tapered Roller Bearing for Energy Mining Automotive

Cross-reference alignment verified — we match internal design, cage type, and precision for every LM501349/10 tapered roller bearing, not just the base number.

Technical Specifications

Application Suitability

When Base Numbers Match but Field Performance Fails

Base designation alignment alone cannot prevent thermal binding in heavy-duty inch-series applications.

Procurement engineers often source components where the primary identifier matches the OEM requirement, yet internal clearances or cage materials differ from the original specification. In my time troubleshooting equipment in Latin American mining sites, I witnessed firsthand how an LM501349/10 tapered roller bearing installed with standard clearance instead of the required thermal expansion allowance seized completely under heavy load . This invisible deviation between the catalog number and the actual field requirement leads to catastrophic downtime that visual inspections simply cannot catch.

Matching the LM501349/10 to Demanding Operational Profiles

Selecting the correct LM501349/10 tapered roller bearing requires looking past the primary identifier to evaluate how the component interacts with the specific machinery envelope. Our technical selection review process ensures that the internal geometry and cage configuration align perfectly with the actual radial and axial loads experienced in mining or energy generation environments. By verifying these application parameters before dispatch, we eliminate the guesswork that often plagues standard catalog ordering.

Navigating Load Reversals and Thermal Gradients

Heavy-duty environments subject inch-series tapered roller bearings to severe combined loading and significant thermal gradients. When equipment operates continuously under high radial forces with moderate axial thrust, the internal contact angles must accommodate the heat generated by friction without compromising the lubricant film. Adequate clearance is mandatory to prevent the rolling elements from binding as the shaft and housing expand at different rates . Furthermore, selecting the appropriate cage material ensures structural stability when shock loads or momentary lubrication starvation occur during peak operational cycles.

Decoding the Inch-Series Architecture and Precision Tiers

The LM prefix designates an inch-series tapered roller bearing, while the /10 suffix identifies the specific cup outer ring series designed to mate with the corresponding cone assembly. Achieving P4 precision in this configuration guarantees tighter dimensional and running accuracy compared to standard commercial grades, which directly reduces vibration in high-speed gearboxes or automotive wheel ends. The availability of nylon, brass, or iron cages allows engineers to optimize the assembly for specific speed limits and operating temperature boundaries, ensuring the GCr15 high-carbon chromium steel races are protected by the correct rolling element guidance system.

The Hidden Costs of Unverified Cross-Referencing

Substituting a component based solely on basic dimensional equivalence often results in unplanned downtime and premature failure. According to the failure analysis frameworks outlined in ISO 281 and ISO 15243, a significant share of early bearing seizures stems from incorrect internal clearance selection rather than material defects . When a standard clearance unit is forced into an application requiring extra clearance for thermal expansion, the resulting preload generates excessive heat, ultimately destroying the raceways and voiding equipment warranties.

Why Technical Verification Matters for Your Supply Chain

Sourcing an LM501349/10 tapered roller bearing through authorized channels eliminates the risk of receiving counterfeits with soft inner rings that fail under nominal loads. We provide batch traceability linked directly to the original manufacturer, ensuring every shipment can be verified for authenticity. Our cross-reference methodology strictly aligns internal design, cage type, and precision suffixes, preventing the dangerous mismatches that cause field failures. Additionally, our application-based selection review covers load, speed, and mounting conditions to guarantee the chosen specification handles your specific operational reality.

Documentation & Authenticity

• Certificate of Conformity confirming the exact P4 precision rating for each batch.
• Batch and lot traceability linking the LM501349/10 directly to the manufacturer.
• Official app QR verification enabling instant authenticity checks on site.
• Dimensional and running accuracy inspection reports validating tight tolerances.
• Country-of-origin documentation supporting customs and compliance requirements.

Storage, Handling & Mounting

• Store the LM501349/10 in its original moisture-barrier packaging until the exact moment of installation.
• Use induction heating for the inner ring cone assembly, strictly avoiding open flames that compromise the GCr15 steel hardness.
• Handle P4 precision components with clean lint-free gloves to prevent surface corrosion from skin moisture.
• Verify the specific cage material limits before applying high-temperature grease during the initial packing phase.
• Ensure the cup and cone components are kept together as a matched set to prevent mixing during warehouse storage.

Preparing Your Technical Inquiry

To ensure the selected LM501349/10 tapered roller bearing matches your exact machinery requirements, please share your operational parameters including radial and axial loads, operating speeds, and expected temperature ranges. Providing the original OEM equipment number allows our engineering team to perform a rigorous cross-reference check, verifying that the internal clearance and cage design align with the factory specification. This technical review ensures you receive a component engineered for your specific duty cycle rather than a generic dimensional substitute.

Frequently Asked Questions

Q: How can I verify the authenticity of the LM501349/10 tapered roller bearing upon delivery?
A: Every unit we supply includes batch and lot traceability documentation linked to the original manufacturer. You can verify authenticity instantly by scanning the packaging QR code through the official brand application. This process confirms the bearing's origin and ensures it has not been substituted with counterfeit components featuring soft inner rings.

Q: Why must internal clearance and cage materials be checked during cross-referencing?
A: Matching only the base designation often overlooks critical internal differences that cause field failures. An LM501349/10 installed with standard clearance in a high-heat mining application will seize due to thermal expansion. We verify clearance, cage type, and precision to ensure the replacement handles the exact thermal and mechanical loads of your equipment.

Q: How do I choose between nylon, brass, and iron cages for this application?
A: The cage material dictates the bearing's speed limits and temperature boundaries. Nylon cages offer low friction for high-speed applications but have strict thermal limits. Brass cages provide excellent durability under high vibration and shock loads typical in crushing equipment, while iron cages suit heavy-duty, low-speed environments where extreme structural rigidity is required.

Q: What does the /10 suffix mean in this inch-series designation?
A: In inch-series tapered roller bearings, the designation is split into the cone inner ring assembly and the cup outer ring. The /10 suffix specifically identifies the cup series dimension and geometry. It is crucial to match both the cone and cup designations correctly to ensure the proper contact angle and load distribution within the housing.

Q: What information do you need to confirm the correct bearing for my machinery?
A: We require your operational parameters, including radial and axial loads, rotational speed, and operating temperatures. Supplying the OEM equipment number or the original manufacturer's part number allows us to perform a comprehensive cross-reference. This ensures the selected LM501349/10 matches the exact internal design and precision required for your specific application.
