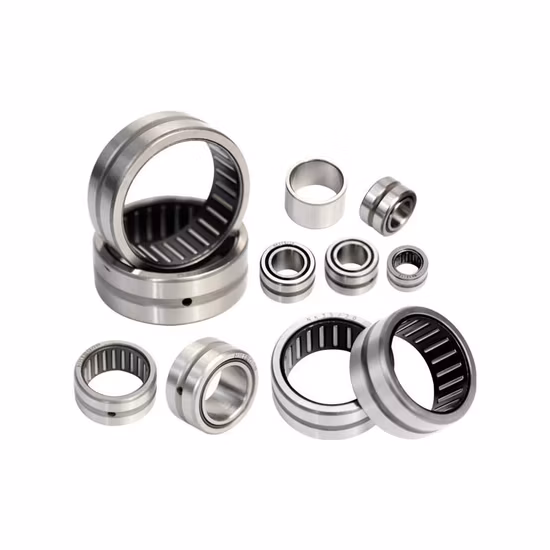

Genuine NTN NK24/20R Needle Roller Bearing 20x32x20mm Authorized Supplier

Full Brand Authorization — A single purchase order consolidates mixed-brand requirements, eliminating the need to coordinate with multiple vendors for your needle roller bearing inventory.

Technical Specifications

Note: The 'r' suffix in the NTN Nk24/20r designation is an unverified suffix requiring manufacturer catalog confirmation for exact internal design variations.

Application Suitability

Why Cage Material Dictates Survival in High-Vibration Gearboxes

Selecting the correct cage material prevents catastrophic fragmentation under resonant vibration.

When sourcing compact radial bearings, procurement teams often focus solely on the basic boundary dimensions, overlooking the internal cage design. In high-vibration environments, a mismatched cage material can lead to rapid fatigue and structural collapse. I have witnessed firsthand how stamped steel cages shatter under sustained vibratory loads in industrial gearboxes, causing needle rollers to skew and score the shaft journal. The NTN Nk24/20r needle roller bearing requires careful attention to these internal components to ensure the cage maintains roller alignment without succumbing to cyclic stress .

Matching the NTN Nk24/20r to Compact Radial Spaces

The primary advantage of this bearing lies in its extremely low cross-section, making it ideal for applications where radial space is severely restricted but high load capacity is mandatory. By utilizing the shaft itself as the inner raceway, the NTN Nk24/20r needle roller bearing maximizes the number of rolling elements within a minimal envelope. Our technical team reviews your specific housing and shaft tolerances to ensure the outer ring fits securely without inducing preload distortion that could compromise the internal clearance.

Navigating Thermal and Lubrication Challenges

Open-type needle roller bearings rely entirely on the host system's lubrication circuit. In gearboxes or automotive transmissions, the oil splash or forced feed must adequately penetrate the narrow contact zones between the rollers and the shaft. If the operating temperature fluctuates significantly, the thermal expansion of the housing can alter the radial internal clearance. Proper lubrication not only reduces friction but also flushes away microscopic wear debris that could otherwise act as an abrasive, accelerating surface fatigue on the needle rollers and the shaft raceway .

Decoding the Core Engineering Parameters

The 'NK' prefix indicates a needle roller bearing without an inner ring, meaning the *e raceway. This design eliminates the inner ring, reducing the overall radial dimension and allowing for a stiffer shaft design. The bearing steel construction provides the necessary core hardness and wear resistance for heavy radial loads. Because the rollers have a high length-to-diameter ratio, they are prone to skewing if the cage fails to guide them precisely. The open design facilitates optimal heat dissipation and allows the bearing to operate within the host machine's centralized oil filtration system, preventing the accumulation of degraded grease that often plagues sealed alternatives in continuous-duty applications.

The Hidden Costs of Cross-Reference Errors

Substituting a seemingly equivalent bearing from another brand without verifying the internal geometry often leads to premature failure. A base number match might hide differences in roller profile, cage pocket geometry, or outer ring wall thickness. Installing an incorrect variant can result in edge loading, rapid temperature spikes, and eventual seizure of the shaft. Such unplanned downtime not only halts production but can also cause catastrophic damage to adjacent gearbox components, voiding equipment warranties and escalating repair costs far beyond the price of the bearing itself .

Why Procurement Engineers Trust Our Verification Process

We do not simply ship a box with a matching part number; we validate the internal specifications. For needle roller bearings, cross-referencing errors frequently occur when suppliers ignore the specific cage material required for high-vibration duties. We provide authorized coverage across all major brands, ensuring that when you order the NTN Nk24/20r needle roller bearing, you receive genuine components with exact internal design matching. Our application-based selection review checks your load, speed, and temperature parameters against the manufacturer's specifications, preventing the installation of standard cages in applications that demand specialized guidance systems.

Documentation & Authenticity

• Certificate of Conformity verifying the genuine NTN origin and manufacturing batch.
• Batch and lot traceability linking the specific NTN Nk24/20r to the factory production run.
• Official app QR verification support for immediate authenticity checks on-site.
• Material test report confirming the metallurgical composition of the bearing steel.
• Dimensional and running accuracy inspection report validating the outer ring tolerances.
• Country-of-origin documentation for customs compliance and import processing.

Storage, Handling & Mounting Protocols

• Retain the original factory packaging until installation to protect the open bearing from ambient moisture and dust ingress.
• Store in a temperature-controlled environment to prevent condensation inside the needle roller assembly.
• Use clean, lint-free gloves when handling to avoid transferring corrosive salts to the bearing steel surfaces.
• Ensure the shaft journal acting as the inner raceway is ground to the precise surface finish and hardness required for NK series bearings.
• Flush the housing with clean oil prior to mounting to remove any machining swarf that could damage the open rollers.
• Verify the housing bore tolerance to prevent outer ring creep under heavy radial loads.

Preparing Your Technical Inquiry

To ensure the selected bearing perfectly aligns with your operational demands, please provide the specific radial loads, operating speeds, and continuous temperature ranges of your application. If you are replacing an existing component, sharing the OEM equipment number or the exact shaft and housing tolerances allows our engineering team to perform a thorough cross-reference and L10 life calculation. Detailing the lubrication method and oil viscosity will help us confirm that the open design is optimal for your system.

Frequently Asked Questions

Q: How do we verify the authenticity of the NTN Nk24/20r upon delivery?
A: We supply comprehensive batch traceability documentation with every shipment. You can verify the authenticity by scanning the QR code on the packaging using the manufacturer's official mobile application. This digital check confirms the production facility, batch number, and original distribution channel, protecting your operations from counterfeit components that often feature soft inner rings and cloned labels.

Q: Why must the shaft hardness be checked when using this NK series bearing?
A: Because the NK designation indicates a bearing without an inner ring, the shaft itself functions as the rolling raceway. If the shaft journal is not hardened and ground to the manufacturer's exact specifications, the needle rollers will rapidly indent the softer metal. This leads to premature surface fatigue, excessive vibration, and catastrophic failure of the entire shaft assembly under load.

Q: What are the risks of ignoring the unverified 'r' suffix during cross-referencing?
A: Suffixes dictate critical internal design variations, such as specific cage materials or roller profile modifications. Ignoring an unverified or misunderstood suffix might result in installing a standard bearing in an application requiring specialized high-vibration resistance. We always consult the manufacturer's latest technical catalogs to confirm the exact meaning of every suffix before finalizing the cross-reference.

Q: How should we manage lubrication for this open-type needle roller bearing?
A: Open bearings rely entirely on the host machine's lubrication system. You must ensure that the gearbox or housing provides a continuous flow of clean, filtered oil to the bearing contact zones. Adequate oil flow not only minimizes friction and heat generation but also flushes away microscopic wear particles, significantly extending the operational lifespan of the needle rollers and the shaft raceway.
