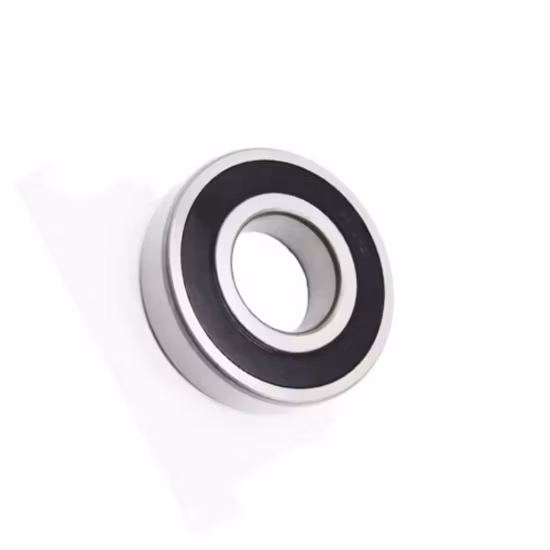

6001 6002 6003 6004 6005 Deep Groove Ball Bearing for Motor

Full batch traceability guaranteed — Every 6001 6002 6003 6004 6005 deep groove ball bearing shipped includes verifiable lot documentation linking directly to the manufacturer's production records.

Technical Specifications

Application Suitability

Why Thermal Expansion Destroys Standard Clearance 6001 6002 6003 6004 6005 Deep Groove Ball Bearing Installations

Matching clearance to operating temperature prevents catastrophic motor seizure.

Sourcing teams often approve purchase orders based strictly on the base designation, overlooking the critical clearance suffix. In high-speed electric motors, friction and ambient heat cause the inner ring to expand faster than the outer ring. When a standard CN clearance bearing is installed in these thermal environments, the internal gap vanishes completely. The rolling elements bind against the raceways, generating massive friction that rapidly degrades the lubricant and welds the components together.

Suffix Selection for Motor Environments

Selecting the correct 6001 6002 6003 6004 6005 deep groove ball bearing requires matching the seal type and internal clearance to the specific motor enclosure. Open variants suit sealed gearboxes where the housing provides primary contamination defense and oil splash lubrication is present. Zz shielded configurations offer non-contact protection for environments with larger dust particles, maintaining low friction at high RPMs. The 2RS contact seals provide superior moisture exclusion for washdown areas but introduce slight frictional heat. We verify these suffix combinations against your exact motor operating profile to prevent mismatched installations.

Operational Demands on Motor Shaft Bearings

Electric motor shafts subject bearings to continuous radial loads combined with high rotational velocities. At these speeds, lubricant degradation accelerates if the internal clearance is too tight, leading to localized overheating. The bearing must also accommodate slight shaft misalignments and thermal growth without transferring axial stress to the ball complement. Proper seal selection is equally vital; contact seals prevent ingress of conductive dust that could short the motor windings, while non-contact shields preserve the grease film integrity during sustained high-speed operation.

Decoding the Gcr15 and Suffix Architecture

The Gcr15 material provides the necessary core hardness and rolling contact fatigue resistance required for continuous motor duty. Beyond the base material, the seal architecture dictates field survival. Zz shields utilize a small air gap to block coarse debris without adding rotational drag, making them ideal for high-speed cooling fans. Conversely, 2RS rubber seals maintain physical contact with the inner ring land, creating a robust barrier against fine particulate ingress and moisture in humid pump applications. Open bearings rely entirely on the equipment housing for sealing, allowing for custom grease selection and external relubrication routines in large industrial drive assemblies.

The Hidden Costs of Ignoring Suffix Specifications

Installing a bearing with incorrect internal clearance or mismatched seals leads to unplanned downtime and catastrophic motor damage. When internal gaps close due to thermal expansion, the resulting friction destroys the cage and scores the raceways, often ruining the motor shaft and end bells in the process. Using open bearings in dusty environments allows abrasive ingress that acts as lapping compound, rapidly wearing away the raceway geometry. These premature failures void equipment warranties and force expensive emergency replacements that halt entire production lines.

Why Procurement Teams Rely on Our Technical Review

We eliminate cross-reference errors by verifying not just the base number, but the exact clearance class and seal configuration required for your motor. Our inventory provides full batch traceability, ensuring every unit can be tracked back to its original manufacturing lot. We utilize official brand app QR verification to authenticate every shipment, protecting your facility from counterfeit bearings with soft inner rings. Furthermore, our technical team reviews your specific load, speed, and temperature parameters to recommend the optimal suffix combination, preventing the costly field failures caused by generic catalog substitutions.

Documentation & Authenticity

• Certificate of Conformity validating the specific Gcr15 material grade for motor duty.
• Batch and lot traceability records linking each 6001 to 6005 unit to its production run.
• Official QR verification codes scannable via manufacturer apps to confirm authenticity.
• Dimensional and running accuracy inspection reports verifying tolerances before dispatch.
• Country-of-origin documentation ensuring compliance with your facility's import regulations.

Storage, Handling & Mounting

• Store Zz and 2RS variants in original packaging to prevent moisture from compromising the factory grease fill.
• Keep open bearings sealed until mounting to protect the bare Gcr15 raceways from ambient humidity.
• Use induction heaters for inner ring expansion, avoiding localized torch heating that alters Gcr15 metallurgy.
• Verify C3 or C4 clearance class on the box label before pressing the bearing onto the motor shaft.
• Handle 2RS sealed units with clean gloves to prevent skin oils from degrading the rubber contact lips.

Engineering Support for Your Next Order

To ensure optimal motor performance, share your specific radial and axial load calculations along with operating RPM and expected thermal growth. Providing the exact OEM equipment number allows our engineering team to perform a precise cross-reference check, verifying that the clearance and seal suffixes match the original design intent. This technical review guarantees that the selected configuration will withstand your unique operational demands without premature thermal binding.

Frequently Asked Questions

Q: How do we verify the authenticity of these motor bearings upon delivery?
A: Every shipment includes official QR codes that can be scanned using the manufacturer's proprietary mobile application. This digital verification confirms the bearing's origin and matches it against the provided batch traceability documentation, effectively eliminating the risk of installing counterfeit units with substandard inner ring hardness that cause rapid motor failures.

Q: Why is checking the clearance suffix as important as the base designation?
A: Base numbers only define physical dimensions, ignoring internal gaps. In electric motors, heat causes the inner ring to expand, reducing internal clearance. If a standard CN clearance is used instead of the required C3, the bearing will thermally bind and seize. We verify the correct clearance suffix to accommodate your specific operating temperatures.

Q: What is the operational difference between Zz shields and 2RS seals?
A: Zz shields are non-contact metal plates that block large debris while maintaining minimal friction, making them ideal for high-speed motor applications. The 2RS seals feature rubber lips that maintain physical contact with the inner ring, providing superior protection against fine dust and moisture, though they introduce slight frictional heat at very high rotational speeds.

Q: How does Gcr15 steel compare to standard carbon steel for motor applications?
A: Gcr15 is a high-carbon chromium bearing steel specifically engineered for rolling contact fatigue. It achieves the necessary core hardness and wear resistance to withstand continuous radial loads and high RPMs in electric motors, whereas standard carbon steel would rapidly deform and spall under identical operational stresses, leading to immediate equipment failure.
